Executive Standard: American Heart Association (AHA) 2020 Guidelines for International Cardiopulmonary Resuscitation (CPR)&Cardiovascular First Aid (ECC)

Function Features: (The simulator uses a dedicated USB data cable to connect, and can use an office computer or laptop without affecting other office work)

Simulator Features：

■ This model is an adult male, with obvious anatomical marks, real hand feeling, uniform skin color, realistic shape, beautiful appearance and easy operation and positioning.
■ The head can swing left and right and rotate 180 degrees horizontally.
■ Vital characteristics simulation: changes in pupil dilation and carotid pulsation.
■ It is made of thermoplastic elastomer mixed rubber material, which is durable.
■ Cardiopulmonary resuscitation: supine position, head can be tilted back, which is convenient for removing foreign bodies in the respiratory tract
• External chest compression is available.
• The airway can be opened.
• You can perform mouth to mouth artificial respiration or use a simple respirator to assist in respiration. The chest undulation can be seen by effective artificial respiration.

Software Features:

■ Operation mode: CPR training operation, CPR assessment operation (one key assessment mode, practical assessment mode).
• Training operation: pressing and blowing can be carried out, and voice prompts will be given when the pressing depth and tidal volume of each operation are not within the standard range.
• One button assessment mode: You can start the assessment after entering the student information, with voice prompts. (Set according to 2020 standard)
•Default parameters:
Time: 150 seconds; Frequency: 100 times/minute; Press and blow ratio: 30:2; Number of cycles: 5;
Assessment of pressing depth: less than 5cm is insufficient, more than or equal to 5cm is correct, and there is no excessive setting.
Assessment of air blowing volume: less than 500ml is insufficient, 500ml-1000ml is correct, and more than 1000ml is excessive.
• Practical evaluation mode: parameters can be set freely.
•The setting items include: operation time, operation frequency, the proportional number of pressing and blowing, the number of cycles, and the correct rate of qualification. The teacher can also record the trainees’ behaviors before operation: consciousness judgment, first aid breathing, pulse check, breath check, and removal of foreign matters. There are voice prompts.
• Whole process simulated ECG display: with the pressing operation, the ECG will change, and it will be displayed as a normal ECG after successful rescue.
• Full range electronic monitoring: press position, press depth and air blowing volume.
• Student management: operation process playback, transcript saving and printing.
■ It can be used for the popularization, training and assessment of cardiopulmonary resuscitation knowledge of the general population and professional medical staff.

AED Defibrillator Function:

■ The design conforms to ergonomics. Open the cover, and the equipment is started; Close the upper cover to shut down the equipment.
■ Simulate the work flow of AED at the emergency scene, AED automatic external defibrillator (special for training) has no high-voltage shock defibrillation action, and Chinese voice prompts throughout the process to guide students to be familiar with the work flow of AED and the key points of using AED.
■ Simulate and automatically detect whether the application position of defibrillation electrode is correct. Students can be familiar with the application position of electrode by repeatedly using the simulated AED
■ Specially designed according to the scenario guidelines of various AEDs stipulated by the American Heart Association (AHA) and the American Red Cross.
■ It is only necessary to connect the defibrillation electrode with the simulator to automatically monitor defibrillation, without human intervention, and automatically detect and analyze the tremor.

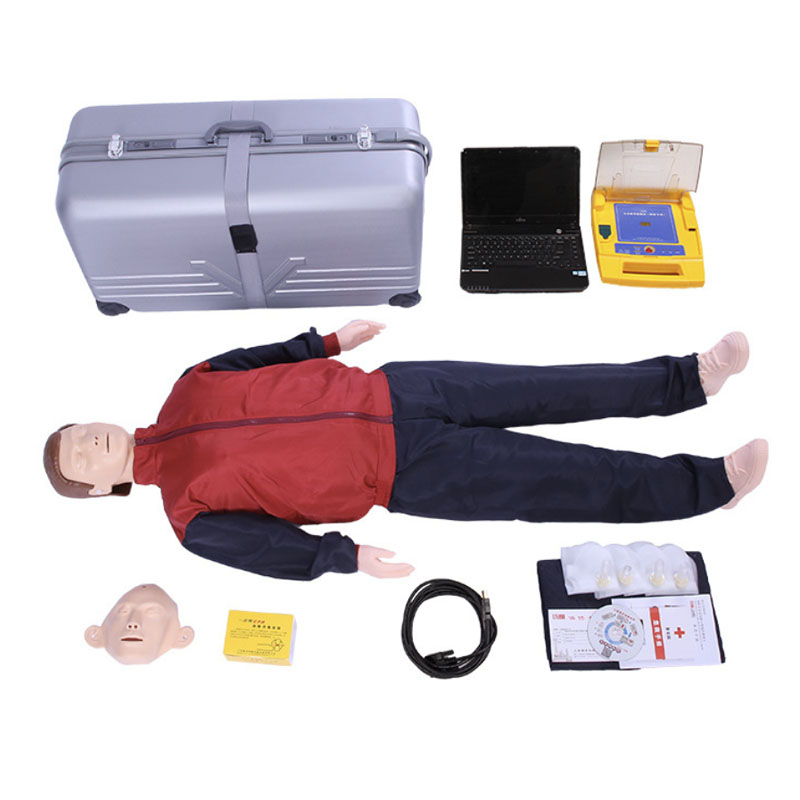

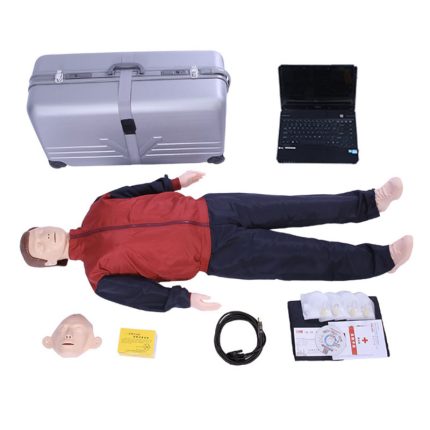

Standard Configuration:

■ One advanced full body resuscitation manikin;
■ One luxury hand pull push hard plastic box for human body;
■ Computer (user self configuration or optional configuration);
■ One AED automatic external defibrillator (special for training);
■ One dedicated USB data cable;
■ One CD of cardiopulmonary resuscitation operation application software;
■ One resuscitation pad;
■ One box of barrier facial mask (50 sheets / box);
■ Four sets of interchangeable lung sac devices;
■ One replaceable facial skin;
■ One operation manual;
■ Warranty card and certificate;

Note: This model does not include computers, which can be provided by the company or by itself.
