Executive Standard: American Heart Association (AHA) 2020 Guidelines for International Cardiopulmonary Resuscitation (CPR)&Cardiovascular First Aid (ECC)

Features:

■ The simulated human has obvious anatomical features, real hand feel, uniform skin color, realistic shape and beautiful appearance;
■ Simulate vital signs: · simulate the recognition of the relative ratio of one dilated pupil to one normal pupil.
■ Artificial respiration and external cardiac compression can be performed. The standard airway can be opened and the airway indicator lights up.
■ Operation mode: CPR training operation, press and air blowing training.
■ Electronic monitoring: the electronic indicator shows the opening and pressing position, depth and blowing volume of the monitored airway.
■ Voice prompt: Chinese voice prompt throughout the training. Voice can be turned on and off and volume can be adjusted.
■ The bar code shows the blowing volume: the correct blowing volume is 500 ~ 600ml-1000ml:
·When the blowing volume is too small, the barcode is yellow.
·When the blowing volume is appropriate, the barcode is green.
·When the blowing volume is too large, the barcode is red.
·The amount of moisture blown in is too fast or too large, resulting in gas entering the stomach indicator;
■ The bar code shows the pressing depth, and the correct pressing depth is 5-6cm:
·When the pressing depth is too little, the barcode is yellow.
·When the pressing depth is appropriate, the barcode is green.
·When the pressing depth is too large, the barcode is red.
■ Operation frequency: the default value of 2020 standard is at least 100 times / min, and it can also be selected from three gears: 100 times / min, 110 times / min and 120 times / min.
■ Operation cycle: the ratio of pressing and blowing is 30:2, and CPR operation is performed for 5 cycles.
■ Power supply status: 220V power supply is used, and 12V power is output after being stabilized by a voltage regulator. Or use 4 No. 1 batteries to work in the state, and adapt to training in the field without power supply;

Material Characteristics:

■ The facial skin, neck skin, chest skin and hair are made of imported thermoplastic elastomer mixed rubber materials, and the body trunk and head are made of high-grade ABS engineering plastics, which are made of stainless steel molds and high-temperature injection molding by injection molding machines; It has the characteristics of accurate anatomical marks, real hand feel, uniform skin color, lifelike shape, beautiful appearance, durability, no deformation after disinfection and cleaning, and convenient disassembly and replacement. Its materials have reached the same level abroad.

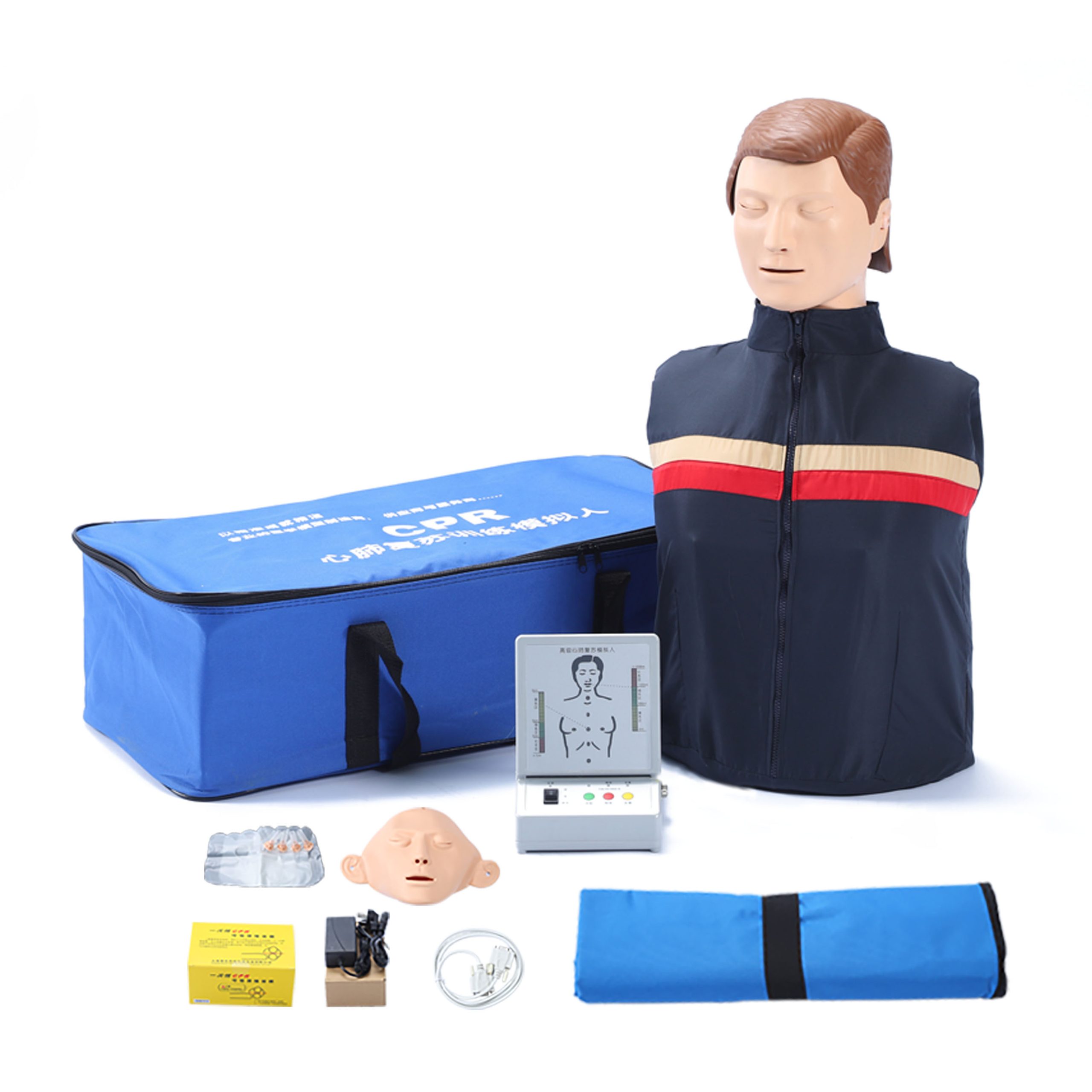

Standard Set Configuration:

■ One advanced half body recovery manikin.
■ One advanced display controller.
■ One luxury super thick Oxford bag.
■ One resuscitation operation pad.
■ One power adapter.
■ One data line.
■ One box of barrier facial mask (50 sheets / box).
■ Four sets of exchangeable lung sac devices.
■ One exchangeable mask.
■ One operation manua.
