Executive Standard: American Heart Association (AHA) 2020 Guidelines for International Cardiopulmonary Resuscitation (CPR)&Cardiovascular First Aid (ECC)
Features:
■ 3.5 inch LCD display: analog ECG, text display,
■ The simulated human has obvious anatomical features, real hand feeling, uniform skin color, realistic shape and beautiful appearance.
■ Simulated vital signs:
• In the initial state, the pupil of the simulated human LCD dilates and the carotid artery has no pulsation.
• During compression, simulate the passive pulsation of human carotid artery, and the pulsation frequency is consistent with the compression frequency.
• After successful rescue, the simulated human LCD pupil returned to normal and the carotid artery started to beat autonomously.
• LCD pupil zoom and carotid pulsation can be turned on and off by the switch.
■ Artificial respiration and external cardiac compression are available. The standard airway can be opened, and the airway indicator light turns on.
■ Three operation modes: CPR training, mode assessment and practical assessment.
• Mode 1: CPR training, including pressing and blowing training.
• Mode 2: mode assessment. Within the set time, according to the 2020 international cardiopulmonary resuscitation standard,
Correctly press and blow the ratio of 30:2 to complete 5 cycles.
• Method 3: Practical assessment. The teacher can set the operating time range
Operation standard, number of cycles, operation frequency, ratio of pressing and blowing.
Functional Features of Controller:
■ Electronic monitoring: the electronic indicator light displays the open and pressed parts of the monitoring airway.
The correct and wrong counts of artificial respiration and chest compressions.
■ Voice prompt: Chinese voice prompt throughout the training and assessment can be turned on and off, and the volume can be adjusted.
■ Text prompt: Chinese text prompt throughout the training and assessment.
■ Barcode display air blowing volume: the correct air blowing volume is 500~600ml-1000ml:
• When the air blowing volume is too small, the bar code is yellow.
• When the air blowing volume is appropriate, the barcode is green.
• When the air blowing volume is too large, the barcode is red.
• The tidal volume blown in is too fast or too large, causing the gas to enter the stomach
Indicator light display; Digital counting display; Error language prompt;
■ The bar code displays the pressing depth, and the correct pressing depth is 5-6cm:
• When the pressing depth is too small, the barcode is yellow.
• When the pressing depth is appropriate, the barcode is green.
• When the pressing depth is too large, the barcode is red.
■ The correct rate of operation can be set automatically.
■ You can set the operation time by yourself, in seconds.
■ Operating frequency: the 2020 standard is at least 100 times/minute, and the value can also be set by yourself.
■ Power supply status: 220V power supply is adopted, and 12V power supply is output after voltage stabilization by voltage regulator.
(Lithium battery can be added for direct use without external power supply.)
■ Print the operation process after the operation.
■ The transcript covers operation mode, consciousness judgment, emergency breathing, pulse check
Check breathing, remove foreign matters, operation frequency, pressing and blowing ratio, cycle times
The number of times of pressing and blowing, the number of correct/wrong pressing, the cause and number of wrong pressing
Reasons and times for correct/wrong blowing, reasons for wrong blowing, setting time, operation time and assessment.
Material Characteristics:
■ The face skin, neck skin, chest skin and hair are made of imported thermoplastic elastomer mixed glue material, which is made of stainless steel mold and injected by injection molding machine at high temperature. It has the characteristics of accurate anatomical marks, real feel, uniform skin color, lifelike shape, beautiful appearance, durability, no deformation after disinfection and cleaning, and convenient disassembly and replacement. Its materials have reached the same level abroad.

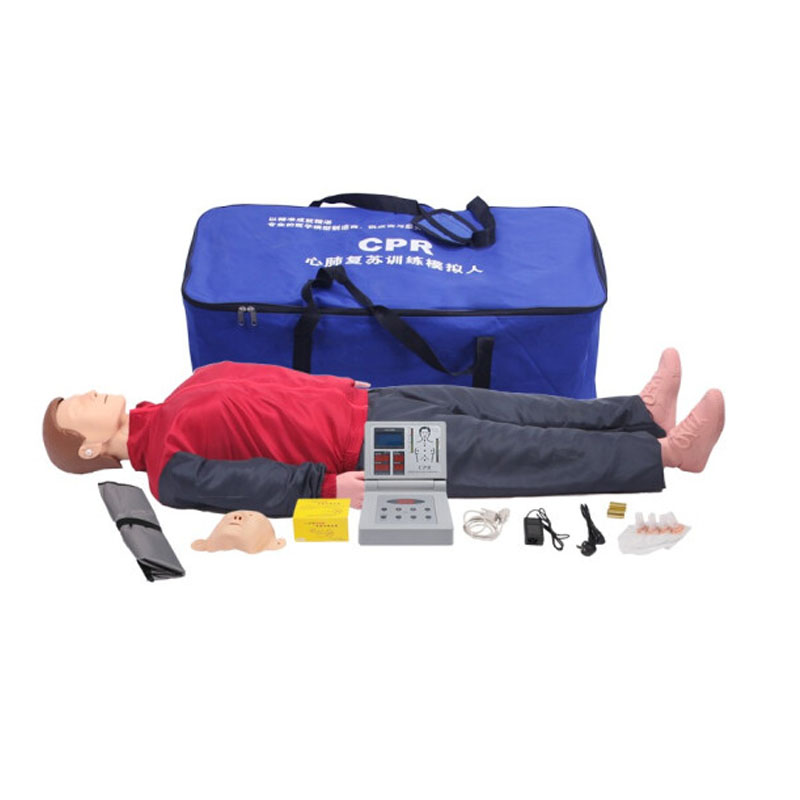

Standard Set Configuration:
■ One advanced full body resuscitation manikin;
■ One advanced display controller;
■ One luxury hand pull push hard plastic box for human body;
■ One resuscitation pad;
■ One power adapter;
■ One data line;
■ one box of barrier facial mask (50 sheets / box);
■ Four sets of interchangeable lung sac devices;
■ One replaceable facial skin;
■ Two rolls of thermal printing paper;
■ One operation manual;
