Applicable disciplines: ICU nursing, emergency medicine nursing, respiratory medicine nursing, cardiology nursing, urology nursing, surgery nursing, emergency medicine, critical care medicine, field medicine, etc.
Implementation standard: American Heart Association (AHA) 2010 international cardiopulmonary resuscitation (CPR) & emergency cardiovascular care (ECC) guideline standard
Features:
★ Logo indicates the functions that need to be used with optional accessories to achieve
▪ ICU skills.
– Airway management techniques: standard oral and nasal intubation, tracheotomy, support for head-up chin-lifting method and jaw-thrusting method to open the airway. Simulation of signs such as dental closure, tongue edema, pharyngeal edema, laryngospasm, unilateral and bilateral pulmonary obstruction, and main airway blockage.
– CPR operation training: mouth-to-mouth, mouth-to-nose, simple respirator-to-mouth and other ventilation methods; electronic monitoring of airway opening, the number of blowing, blowing frequency, blowing volume, the number of compressions, compression frequency, compression position and compression depth; automatic judgment of the ratio of artificial respiration and chest compressions; real-time data display, the whole process of Chinese voice prompts; after successful resuscitation, the pupils of the simulator change from dilated to normal After successful resuscitation, the pupil of the simulator becomes normal, the artery resumes pulsation, and autonomous respiration occurs.
★ Real defibrillation and pacing: it can be used with different manufacturers and different models of defibrillators to achieve real defibrillation and pacing.
★ Simulated defibrillation pacing: multimedia animation shows the use of medical defibrillation pacemakers, which can be used with SA/J880 simulated defibrillation pacemakers to realize defibrillation pacing. Defibrillation energy can be selected, and the maximum defibrillation energy reaches 360J.
★ Real AED: can be used with different manufacturers and different models of AEDs to achieve real AED training.
★ Simulation AED: multimedia animation shows the AED operation process, and can be used with SA/AED99F automatic external simulation defibrillator to realize AED training. The whole process of Chinese voice prompts, providing patch electrodes and button electrodes, automatically detecting heart rate and analyzing whether defibrillation is needed.
★ Real ECG monitoring: can be used with different manufacturers and models of ECG monitors to achieve real ECG monitoring.
★ Simulated ECG monitoring: It can be used with SA/J115 multi-parameter simulated ECG monitor to realize simulated ECG monitoring. Use finger clip type blood oxygen probe to detect blood oxygen and store thousands of ECGs internally. Multi-parameter analog monitor (LCD) screen provides 12-lead ECG, oxygen saturation, respiration, carbon dioxide, blood pressure (arterial blood pressure, central venous pressure, pulmonary artery pressure, non-invasive blood pressure), cardiac output, etc.
▪ Vital signs simulation:
– Pupil observation: pupil liquid crystal display for CSTN pseudo-color, 65K color, RGB; can simulate the normal, dilated, shrunken state of the pupil at will between 1-9mm.
– Carotid artery, femoral artery, radial artery pulsation, vivid reproduction of patient moaning, coughing and vomiting sounds.
– Respiratory mode: simulate normal breathing, sigh-like breathing, Chen-Schloss respiration, Kushmore respiration, Biol respiration.
– Real autonomous breathing, with undulation of the thorax when breathing, adjustable breathing frequency and breathing depth.
– Auscultation: dozens of sounds can be auscultated, including normal heart sounds, abnormal heart sounds, normal respiratory sounds, abnormal respiratory sounds, normal bowel sounds, abnormal bowel sounds.
▪ Clinical care training:
– Puncture: thoracentesis, bone marrow puncture.
– Blood pressure measurement training, deltoid subcutaneous injection, lateral femoral intramuscular injection, arm vein puncture, injection, blood transfusion, gluteal intramuscular injection.
– Cleaning and combing hair, face washing, ear cleaning drip, oral care, denture care, suction method, oxygen inhalation, oral and nasal feeding, gastric lavage, gastrointestinal decompression, enema, fistula drainage, male/female catheterization, male/female bladder irrigation.
– Holistic care: right and left joint flexion, rotation, up and down movement, bathing, dressing and changing, hot and cold therapy.
▪ Software system application:
– Provide stand-alone version (one point one set), network version (one point multiple sets) software, users can choose according to their actual needs.
– Script / case editing: support users to self-edit simulation nursing cases, the software automatically records the changes in the condition and the process of the trainee’s operation.
– Simulation of syringe pump/infusion pump use: multimedia animation shows the operation process of syringe pump/infusion pump, and drugs can be selected for operation.
– Training and assessment: The software memory has hundreds of examination questions. Support ECG, first aid knowledge theory, nursing scenarios, cases, CPR training and assessment.
– ECG monitoring: Using finger-clamp blood oxygen probe to realize simulated ECG monitoring and real ECG monitoring, thousands of ECGs are stored internally.
– Nursing scenario script training/assessment: The system comes with dozens of scenarios, covering patient care in internal medicine, surgery, emergency, ICU and other departments, and tests the mastery of key knowledge points of nursing operations through interactive multimedia courseware. The software provides a variety of medications and typical auxiliary examinations, such as chest X-ray, echocardiogram, 12-lead ECG, etc.
– Local area network teaching: optional camera with color video screen monitoring function, which can monitor the operation methods and process of each online student in real time video screen. Comprehensive computer synchronized statistics, easy to teach to master the training assessment of each student.
System components
▪ Hardware:

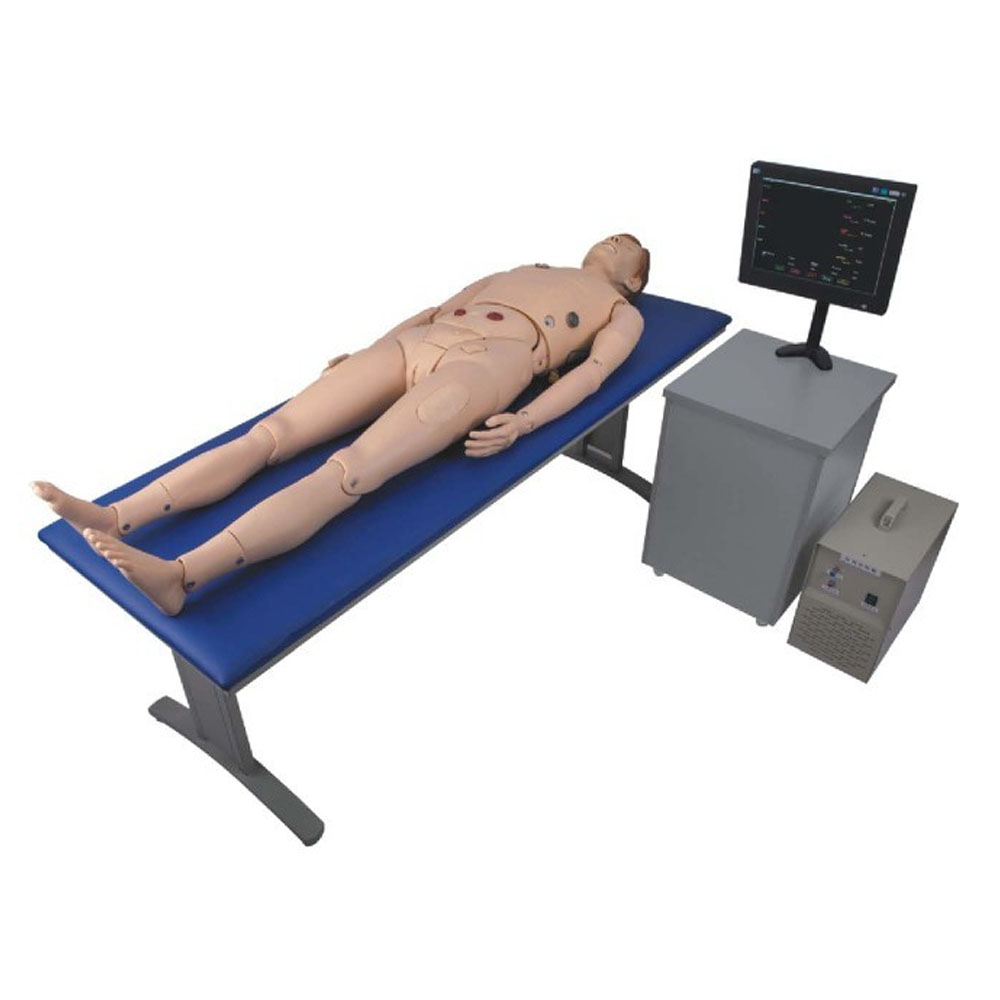

– ACLS highly intelligent adult simulator.
– SA/S7 simulated blood pressure measuring instrument.
– Simple respirator, stethoscope, laryngoscope, tracheal cannula, infusion set
▪ Software.
– Teacher machine application software V2.0 over LAN.
– Application software V2.0 for student machines on LAN.
– SA script editing software V2.0.
Optional accessories (user-assigned).
– Real cardiac defibrillation pacemaker.
– J980 simulated cardiac defibrillation pacemaker.
– Real AED.
– AED99F automated external simulated defibrillator.
– Real ECG monitor.
– J115 multiparameter analog ECG monitor.
– Video monitoring equipment.
– Computers.
– PC workstations.
